Nitrous Outlet Bottle Heater Wiring Diagram

Install the pressure transducer on the bottle outlet nipple.

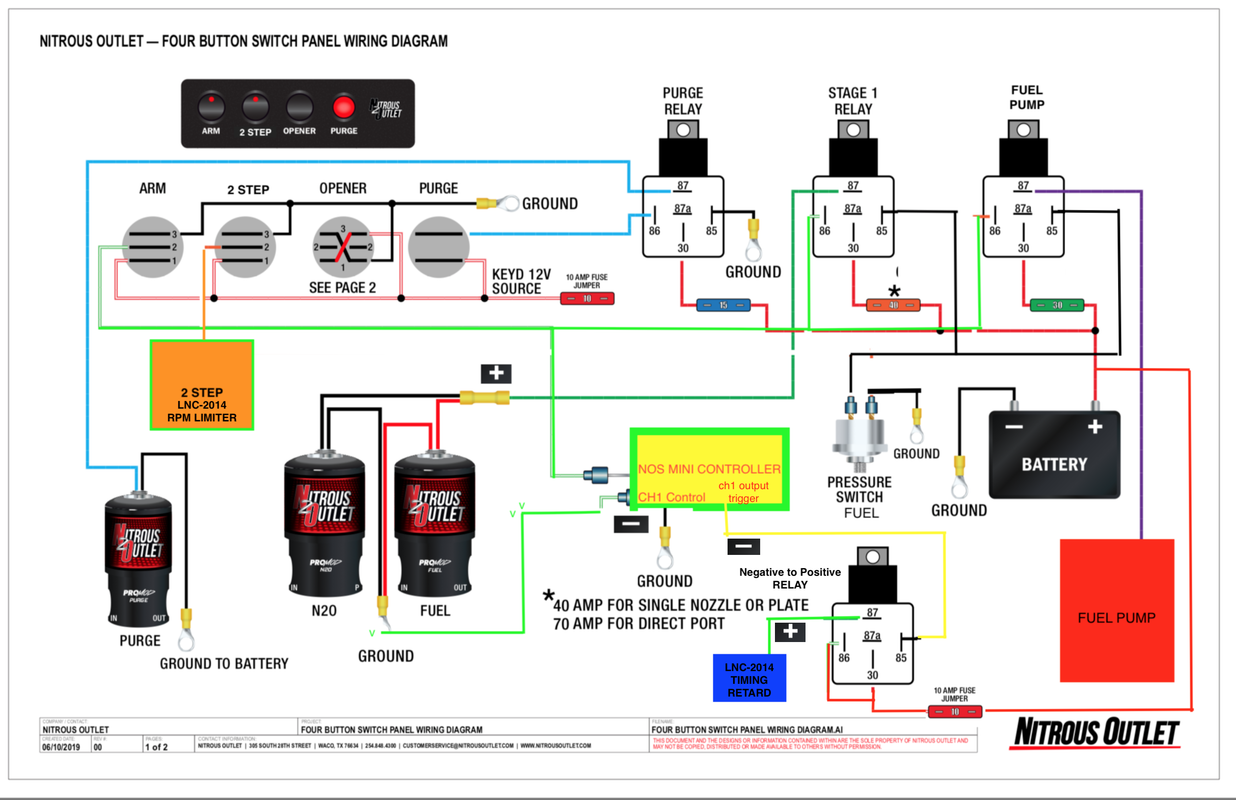

Nitrous outlet bottle heater wiring diagram. 03 ground ground ground keyd 12v source ter arming switch battery 87 87a 86 85 y 30 nitrous ttle pressure switch 14 ga. 02 opener arm heater opener purge 87 87a 86 30 85 87 87a 86 30 85 opener relay 1 open close. Four button w remote bottle opener wiring diagram 2020. Arm heater opener purge 3 2 1 3 1 3 1 pressure switch ground battery wot switch 10 amp fuse jumper 10.

Universal single stage wiring diagram filename. Heated bottle bracket instructions. Waco tx 76710. Remote bottle opener instructions.

Step by step pictures and diagrams to help you install your nitrous kit systems and components are the quickest and easiest way to get large horsepower increases with a minimum of engine modifications and expense. Install the heater element on the nitrous bottle being sure the element is square and flat with the bottle surface. Waco tx 76710. Things like bad wiring high bottle pressure and lack of fuel are just a few examples that can cause serious headaches.

Opener wiring diagram ai created date. These wiring diagrams will help you wire up your nitrous system or nitrous accessory. Nitrous outlet bottle heaters and blankets. Opener wiring diagram filename.

Nitrous bottles and accessories bottle heaters and blankets. This document and the designs or information contained within are the sole property of nitrous outlet and may not be copied distributed or made available to others without permission. Nitrous oxide install instructions directions. Includes nitrous purge nitrous bottle heater and dedicated fuel system.

Remote nitrous bottle opener wiring diagram. Nitrous kits offer serious horsepower at the flip of a switch. Your 1 source for everything nitrous. X series bottle heater wiring diagram wrap around style ai created date.

Universal single stage wiring diagram ai created date. Current search remove all your 1 source for everything nitrous. Jumper 10 12 ga 12 ga 10 ga 16 ga 16 ga 16 ga 12 ga 12 ga 14 ga 16 ga 10 ga 12 ga 20 20 amp fuse jumper. Connect either wire from the heater element to a ground source usually the bottle bracket if it is mounted to the vehicle chassis or body.

Opener wiring diagram filename. Hot water bath bottle heater instructions shipped after 06 21 2018 hot water bath bottle heater instructions shipped before 06 21 2018 x series bottle heater instructions. While this process is simple a lot of enthusiasts have a tendency to create their own problems when installing a nitrous system. When the nitrous and extra fuel ignite the engine will generate more horsepower as well as torque.
